TMXT504 SAW BANDPASS FILTER

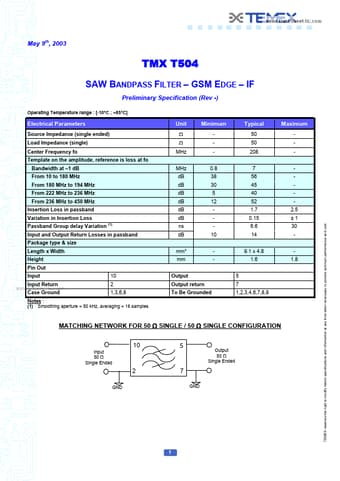

May 9th, 2003 TMX T504 SAW BANDPASS FILTER GSM EDGE IF Preliminary Specification (Rev -) Operating Temperature range : [-10°C ; +85°C] Electrical Parameters Source Impedance (single ended) Load Impedance (single) Center Frequency fo Template on the amplitude, reference is loss at fo Bandwidth at 1 dB From 10 to 180 MHz From 180 MHz to 194 MHz From 222 MHz to 236 MHz From 236 MHz to 450 MHz Insertion Loss in passband Variation in Insertion Loss Passband Group delay .
