U4083B - Low-Power Audio Amplifier for Telephone Applications

TEMIC Semiconductors

📥 Download Datasheet

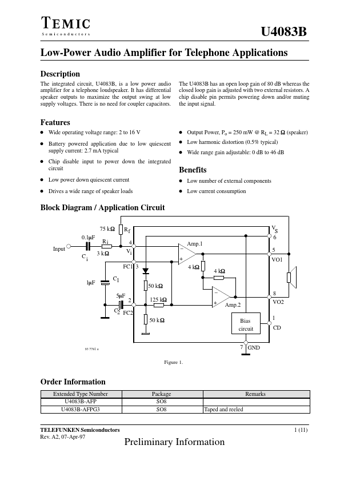

U4083B Datasheet Preview — Preview of U4083B PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: U4083B
Manufacturer: TEMIC Semiconductors
File Size: 132.05 KB
Datasheet: U4083B_TEMICSemiconductors.pdf
Description: Low-Power Audio Amplifier for Telephone Applications

U4083B Product details

Description

The integrated circuit, U4083B, is a low power audio amplifier for a telephone loudspeaker.

Features

D Wide operating voltage range: 2 to 16 V D Battery powered application due to low quiescent supply current: 2.7 mA typical D Output Power, Po = 250 mW @ RL = 32 W (speaker) D Low harmonic distortion (0.5% typical) D Wide range gain adjustable: 0 dB to 46 dB D Chip disable input to power down the integrated circuit Benefits D Low number of external components D Low current consumption D Low power down quiescent current D Drives a wide range of speaker loads Block Diagram / Application Circu.
