BA604 - Silicon Planar Diode

TEMIC

Datasheet Details

Part number	BA604
Manufacturer	TEMIC
File Size	48.69 KB
Description	Silicon Planar Diode
Datasheet	BA604 Datasheet

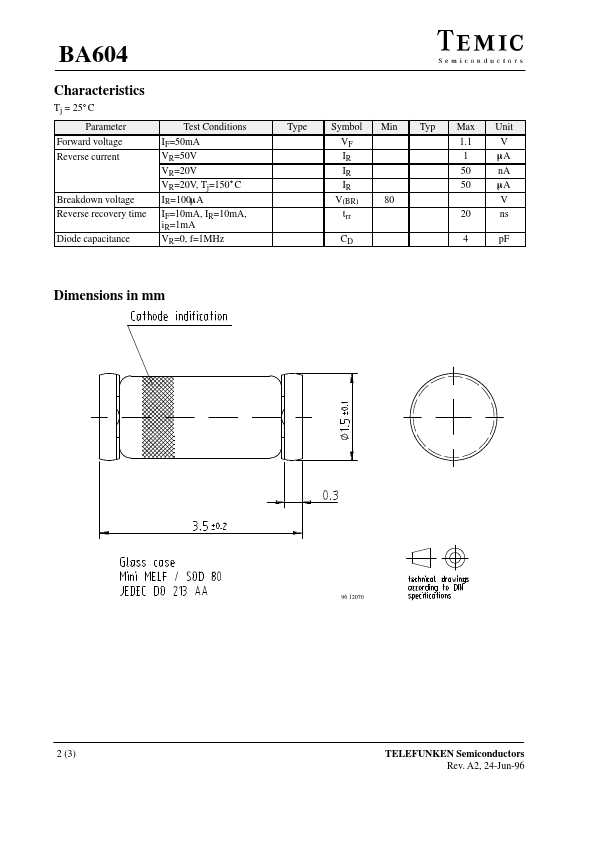

Additional preview pages of the BA604 datasheet.

📁 Similar Datasheet

BA604 - SURFACE MOUNT FAST SWITCHING DIODE (Sunmate)
BA604 - Small Signal Switching Diode (Vishay)
BA601N - SMD Gas Discharge Tube (Bencent)
BA60BC0FP - 1.0A Low-Dropout Voltage Regulator (Rohm)
BA60BC0T - 1A Variable/Fixed Output LDO Regulators (Rohm)
BA60BC0WFP - 1.0A Low-Dropout Voltage Regulator (Rohm)
BA60BC0WFP-E2 - 1A Variable/Fixed Output LDO Regulators (Rohm)
BA60BC0WT - 1A Variable/Fixed Output LDO Regulators (Rohm)
BA60BC0WT-V5 - 1.0A Low-Dropout Voltage Regulator (Rohm)
BA6104 - LED Level Meter Driver (ROHM Electronics)

Other Datasheets by TEMIC

Full PDF Text Transcription

Click to expand full text

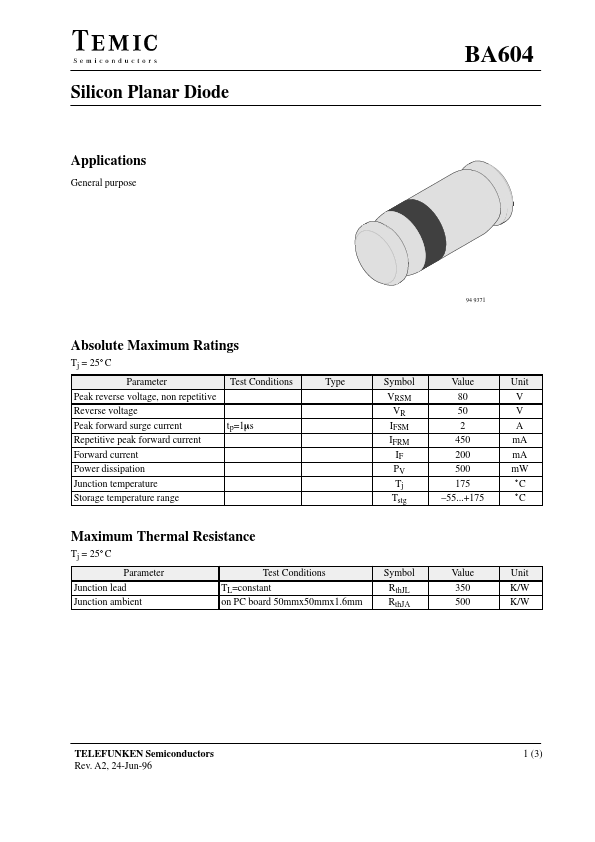

Silicon Planar Diode Applications General purpose BA604 94 9371 Absolute Maximum Ratings Tj = 25_C Parameter Peak reverse voltage, non repetitive Reverse voltage Peak forward surge current Repetitive peak forward current Forward current Power dissipation Junction temperature Storage temperature range Test Conditions tp=1ms Type Symbol Value Unit VRSM 80 V VR 50 V IFSM IFRM 2 A 450 mA IF 200 mA PV 500 mW Tj 175 °C Tstg –55...+175 °C Maximum Thermal Resistance Tj = 25_C Parameter Junction lead Junction ambient Test Conditions Symbol Value Unit TL=constant on PC board 50mmx50mmx1.6mm RthJL RthJA 350 K/W 500 K/W TELEFUNKEN Semiconductors 1 (3) Rev.
