DF005S Glass Passivated Bridge Rectifiers

DF005S Description

TIGER ELECTRONIC CO.,LTD DF0 05S THRU DF1 0S Single Phase 1.0 AMPS.Glass Passivated Bridge Rectifiers Voltage Range 50 to 1000 Volts Current 1.0 A.

DF005S Features

* UL Recognized File # E-230084
* Ideal for printed circuit board
* Reliable low cost construction technique results in inexpensive product
* High temperature soldering guaranteed: 260℃ / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension Mechanic

📥 Download Datasheet

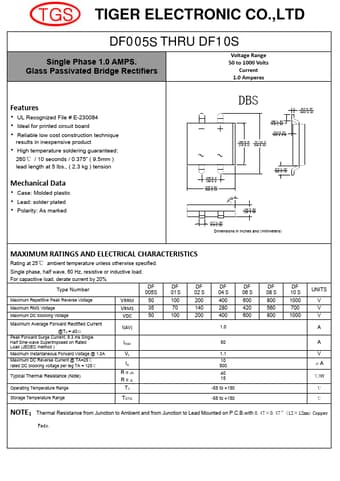

Preview of DF005S PDF
datasheet Preview Page 2

Datasheet Details

Part number
DF005S
Manufacturer
TGS
File Size
125.40 KB
Datasheet
DF005S-TGS.pdf
Description
Glass Passivated Bridge Rectifiers
