DF08, DF005 Silicon Bridge Rectifiers

DF08 Description

TIGER ELECTRONIC CO.,LTD DF005 THRU DF10 Single Phase 1.0 AMPS.Silicon Bridge Rectifiers Voltage Range 50 to 1000 Volts Current 1.0 Amperes DB Fea.

DF08 Features

* UL Recognized File # E-230084
* Ideal for printed circuit board
* Reliable low cost construction technique results in inexpensive product
* High temperature soldering guaranteed: 260℃ / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension Mechanic

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF08, DF005. Please refer to the document for exact specifications by model.

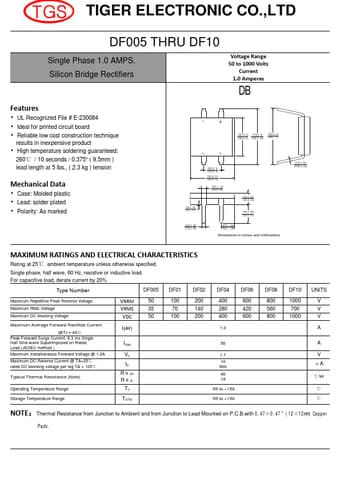

datasheet Preview Page 2

Datasheet Details

Part number
DF08, DF005
Manufacturer
TGS
File Size
80.58 KB
Datasheet
DF005-TGS.pdf
Description
Silicon Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: DF08, DF005.
Please refer to the document for exact specifications by model.
