DS1302

Trickle Charge Timekeeping Chip

DS1302 Features

* Real time clock counts seconds, minutes hours, date of the month, month, day of the week, and year with leap year compensation valid up to 2100 31 x 8 RAM for scratchpad data storage Serial I/O for minimum pin count 2.0

* 5.5V full operation Uses less than 300 nA at 2.0V Single

* byte or

DS1302 General Description

8

*Pin DIP 8-Pin DIP (Industrial) 8

*Pin SOIC (200 mil) 8

*Pin SOIC (Industrial) 8

*Pin SOIC (150 mil) 8

*Pin SOIC (Industrial) 16-Pin SOIC (300 mil) 16-Pin SOIC (Industrial) 16-Pin SOIC PIN DESCRIPTION X1, X2 GND RST

* 32.768 kHz Crystal Pins

* .

DS1302 Datasheet (272.51 KB)

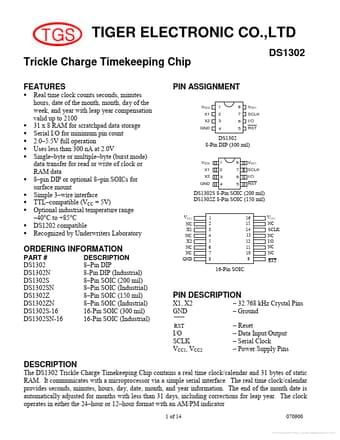

Preview of DS1302 PDF

Datasheet Details

Part number:

DS1302

Manufacturer:

TGS

File Size:

272.51 KB

Description:

Trickle charge timekeeping chip.
