TPA12 Datasheet, Amplifier, THALER

TPA12 Features

  • Amplifier
  • HIGH OUTPUT CURRENT - ±15A PEAK
  • HIGH VOLTAGE RATING - ±50V
  • LOW THERMAL RESISTANCE
      – 1.4 oC/W
  • CURRENT FOLDOVER PROTECTION

PDF File Details

Part number:

TPA12

Manufacturer:

THALER

File Size:

143.69kb

Download:

📄 Datasheet

Description:

Power operational amplifier. The TPA12 and TPA12A are designed for high voltage and high current applications. They can deliver up to 600 Watts of power to a loa

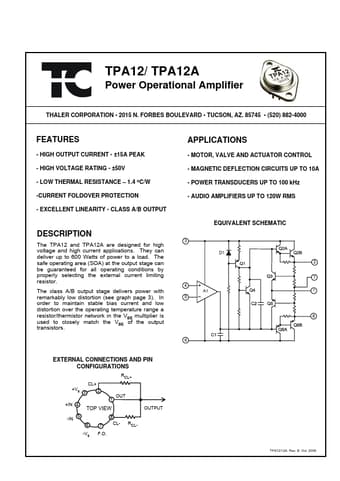

Datasheet Preview: TPA12 📥 Download PDF (143.69kb)
Page 2 of TPA12 Page 3 of TPA12

TPA12 Application

  • Applications They can deliver up to 600 Watts of power to a load. The safe operating area (SOA) at the output stage can be guaranteed for all opera
