TC4004A-01 Datasheet - TINSHARP

TC4004A-01 LCD

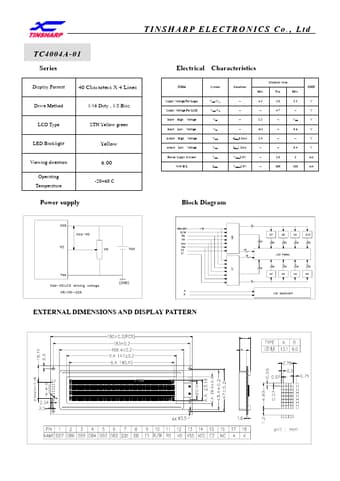

TINSHARP ELECTRONICS Co., Ltd TC4004A-01 Series Display Format 40 Characters X 4 Lines Drive Method 1/16 Duty , 1/5 Bias LCD Type STN Yellow green LED Backlight Yellow Viewing direction Operating Temperature Power supply 6:00 -20+60 C Electrical Characteristics ITEM Supply Voltage For Logic Supply Voltage For LCD Input High Voltage Input Low Voltage output High Voltage output Low Voltage Power Supply Current With B/L Symbol VDD-VSS VDD-V0 VIH VIL VOH VOL VDD ILED Condition .

TC4004A-01-TINSHARP.pdf

TC4004A-01 Datasheet Preview — Preview of TC4004A-01 PDF

Datasheet Details

Part number:

TC4004A-01

Manufacturer:

TINSHARP

File Size:

213.96 KB

Description:

Lcd.
