TC4004A Datasheet - OPPOD

TC4004A LCD

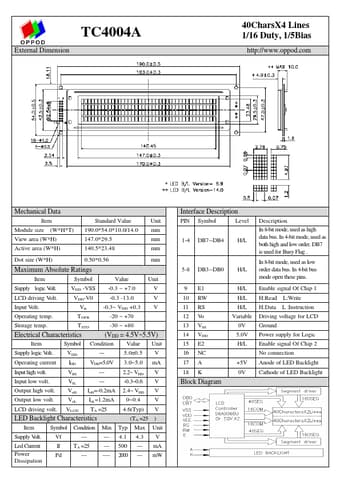

TC4004A External Dimension 40CharsX4 Lines 1/16 Duty, 1/5Bias http://www.oppod.com Mechanical Data Item Module size (W H T) View area (W H) Active area (W H) Standard Value 190.0 54.0 10.0/14.0 147.0 29.5 140.5 23.48 Unit mm mm mm Dot size (W H) 0.50 0.56 mm Maximum Absolute Ratings Item Symbol Value Unit Supply logic Volt. VDD -VSS -0.3 ~ +7.0 V LCD driving Volt. Input Volt. VDD-V0 Vin -0.3 -13.0 -0.3~ VDD +0.3 V V Operating temp. TOPR.

TC4004A Datasheet (27.51 KB)

TC4004A Datasheet Preview — Preview of TC4004A PDF

Datasheet Details

Part number:

TC4004A

Manufacturer:

OPPOD

File Size:

27.51 KB

Description:

Lcd.
