TNPF13N50 - Silicon N-Channel Power MOSFET

TNPF13N50 Datasheet Preview — Preview of TNPF13N50 PDF

Datasheet Details

Part number	TNPF13N50
Manufacturer	TIONER
File Size	1.01 MB
Description	Silicon N-Channel Power MOSFET
Datasheet	TNPF13N50-TIONER.pdf

TNPF13N50 Product details

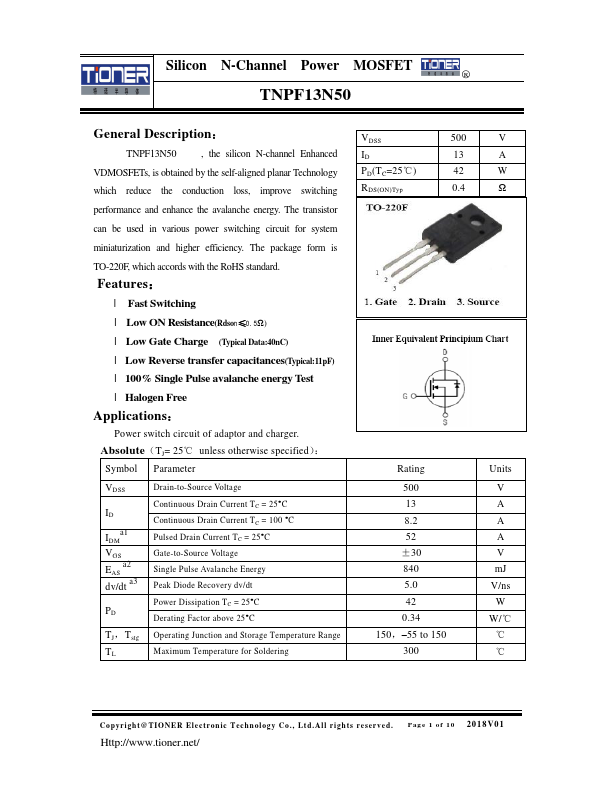

Description

TNPF13N50 , the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy.The transistor can be used in various power switching circuit for system miniaturization and higher efficiency.The package form is TO-220F, which accords with the RoHS standard.

Features

l Fast Switching l Low ON Resistance(Rdson≤0.5Ω) l Low Gate Charge (Typical Data:40nC) l Low Reverse transfer capacitances(Typical:11pF) l 100% Single Pulse avalanche energy Test l Halogen Free.
