TNPU0603-e3 - Ultra Precision Thin Film Chip Resistors

Vishay

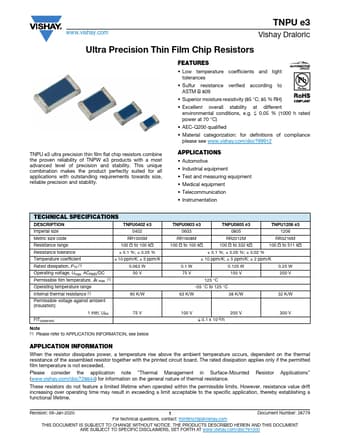

TNPU0603-e3 Datasheet Preview — Preview of TNPU0603-e3 PDF

Datasheet Details

Part number	TNPU0603-e3
Manufacturer	Vishay ↗
File Size	141.00 KB
Description	Ultra Precision Thin Film Chip Resistors
Datasheet	TNPU0603-e3-Vishay.pdf

TNPU0603-e3 Product details

Description

TNPU0402 e3 Imperial size 0402 Metric size code RR1005M Resistance range 100  to 100 k Resistance tolerance ± 0.1 %; ± 0.05 % Temperature coefficient ± 10 ppm/K; ± 5 ppm/K Rated dissipation, P70 (1) 0.063 W Operating voltage, Umax.ACRMS/DC 50 V Permissible film temperature, F max.(1) Operating temperature range Internal thermal resistance (1) 90 K/W Permissible voltage against ambient (insulation): FITobserved 1 min; Uins 75 V Note (1) Please refer to APPLICATION IN

Features

Low temperature coefficients and tight tolerances.
Sulfur resistance verified according to ASTM B 809.
Superior moisture resistivity (85 °C; 85 % RH).
Excellent overall stability at different environmental conditions, e. g.  0.05 % (1000 h rated power at 70 °C).
AEC-Q200 qualified.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
