BT24A15 Datasheet - TNK

BT24A15 10/100 Base-T DUAL port transformer Module

10/100 Base-T DUAL port transformer Module Designed to meet IEEE802.3u requirement Designed to meet IR 255℃ peak requirement Primary inductance 350uH min with 8mA DC Bias RoHS Compliant Operating temperature range:0℃to+70℃ Storage temperature range:-25℃to+125℃ Electrical Specifications @ 25℃ Part Number BT24A15 Turn Ratio Tx Rx 1:1 1:1 Insertion Loss 0.5~100MHz (dB Max) -1.0 Return Loss (dB Min) 0.5-30 MHz 30.1-60 MHz 60.1-80 MHz -16 -14 -12 Cross Talk (dB Min) 0.5-40 MHz 40.1-100.

BT24A15 Datasheet (96.59 KB)

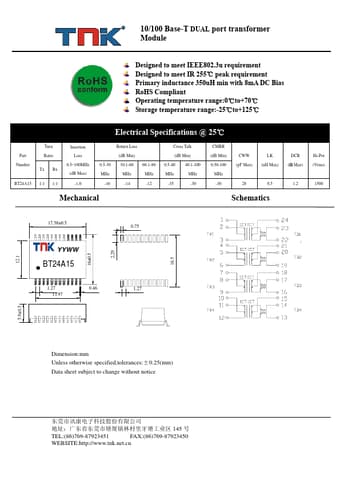

BT24A15 Datasheet Preview — Preview of BT24A15 PDF

Datasheet Details

Part number:

BT24A15

Manufacturer:

TNK

File Size:

96.59 KB

Description:

10/100 base-t dual port transformer module.
