QD18A11 1000 Base-T single port through hole Magnetics

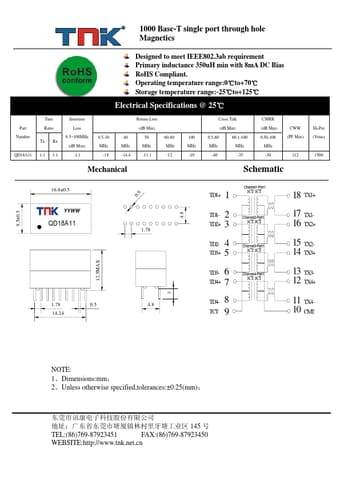

1000 Base-T single port through hole Magnetics Designed to meet IEEE802.3ab requirement Primary inductance 350uH min with 8mA DC Bias RoHS Compliant. Operating temperature range:0℃to+70℃ Storage temperature range:-25℃to+125℃ Electrical Specifications @ 25℃ Part Number QD18A11 Turn Ratio Tx Rx 1:1 1:1 Insertion Loss 0.5~100MHz (dB Max) -1.1 0.5-30 MHz -18 Return Loss (dB Min) 40 50 60-80 MHz MHz MHz -14.4 -13.1 -12 100 MHz -10 Cross Talk (dB Min) 0.5-60 60.1-100 MHz MHz -4.

QD18A11 Datasheet (47.56 KB)

QD18A11 Datasheet Preview — Preview of QD18A11 PDF

Datasheet Details

Part number:

QD18A11

Manufacturer:

TNK

File Size:

47.56 KB

Description:

1000 base-t single port through hole magnetics.
