QD30A02 1000 Base-T through hole Magnetics

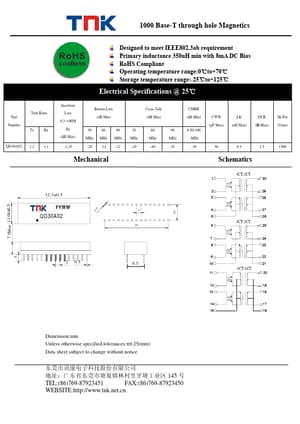

1000 Base-T through hole Magnetics Designed to meet IEEE802.3ab requirement Primary inductance 350uH min with 8mA DC Bias RoHS Compliant Operating temperature range:0℃to+70℃ Storage temperature range:-25℃to+125℃ Electrical Specifications @ 25℃ Part Number Turn Ratio Tx Rx QD30A02 1:1 1:1 Insertion Loss 0.3~100M Hz (dB Max) -1.15 Return Loss (dB Min) Cross Talk (dB Min) 30 MHz -20 60 MHz -14 80 MHz -12 30 MHz -45 60 MHz -40 80 MHz -35 Mechanical CMRR (dB Min) 0.50-100 MHz -30 CW.

QD30A02 Datasheet (115.26 KB)

QD30A02 Datasheet Preview — Preview of QD30A02 PDF

Datasheet Details

Part number:

QD30A02

Manufacturer:

TNK

File Size:

115.26 KB

Description:

1000 base-t through hole magnetics.
