LL1005-FH12NS - Multilayer Chip Inductors

This page provides the datasheet information for the LL1005-FH12NS, a member of the LL1005-FH1N0S Multilayer Chip Inductors family.

📥 Download Datasheet

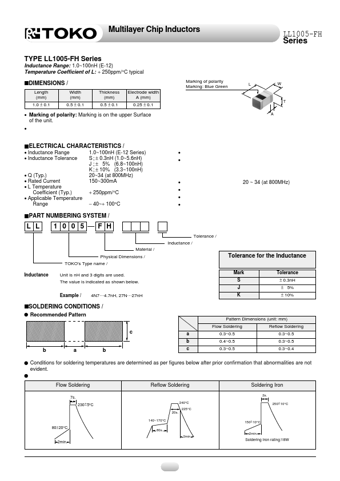

Datasheet preview – LL1005-FH12NS

Datasheet Details

Part number LL1005-FH12NS
Manufacturer TOKO
File Size 63.46 KB
Description Multilayer Chip Inductors
Datasheet download datasheet LL1005-FH12NS Datasheet
Additional preview pages of the LL1005-FH12NS datasheet.

📁 Similar Datasheet

  • LL101 - Silicon Schottky Barrier Diode for general purpose applications (Semtech Corporation)
  • LL101 - Schottky Diodes (General Semiconductor)
  • LL101 - Surface Mount Si-Schottky Barrier Diodes (Diotec Semiconductor)
  • LL101A - Silicon Schottky Barrier Diode for general purpose applications (Semtech Corporation)
  • LL101A - Schottky Diodes (General Semiconductor)
  • LL101A - Surface Mount Si-Schottky Barrier Diodes (Diotec Semiconductor)
  • LL101A - Small-Signal Diode (GOOD-ARK)
  • LL101A - SMALL SIGNAL SCHOTTKY DIODES (CDIL)
  • LL101A - Schottky Barrier Rectifiers (LGE)
  • LL101A - Small Signal Schottky Diodes (Vishay)
Other Datasheets by TOKO

Full PDF Text Transcription

Click to expand full text
Multilayer Chip Inductors LL1005-FH Series TYPE LL1005-FH Series Inductance Range: 1.0~100nH (E-12) Temperature Coefficient of L: + 250ppm/°C typical DIMENSIONS / Length (mm) 1.0 ± 0.1 Width (mm) 0.5 ± 0.1 Thickness (mm) 0.5 ± 0.1 Electrode width A (mm) 0.25 ± 0.1 • Marking of polarity: Marking is on the upper Surface of the unit. • Marking of polarity Marking: Blue Green L W T A ELECTRICAL CHARACTERISTICS / • Inductance Range 1.0~100nH (E-12 Series) • Inductance Tolerance S ; ± 0.3nH (1.0~5.6nH) J ; ± 5% (6.8~100nH) K ; ± 10% (3.3~100nH) • Q (Typ.) 20~34 (at 800MHz) • Rated Current 150~300mA • L Temperature Coefficient (Typ.
