LTF2012B-F, LTF3216B, Multilayer Chip Band-Pass Filter

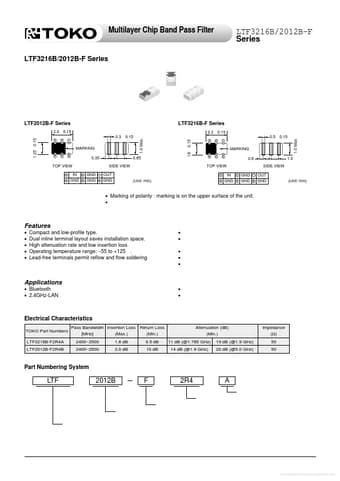

Multilayer Chip Band Pass Filter LTF3216B/2012B-F Series LTF3216B/2012B-F Series LTF2012B-F Series 2.0 0.15 1.0 Max.0.15 LTF3216B-F Series 3.2 0..

datasheet Preview Page 1 from Datasheet4u.com

LTF3216B_TOKO.pdf

LTF2012B-F Datasheet Preview — This datasheet PDF includes multiple part numbers: LTF2012B-F, LTF3216B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LTF2012B-F, LTF3216B

Manufacturer:

TOKO

File Size:

64.23 KB

Description:

Multilayer Chip Band-Pass Filter

Note:

This datasheet PDF includes multiple part numbers: LTF2012B-F, LTF3216B.
Please refer to the document for exact specifications by model.

Features

* Compact and low-profile type. Dual inline terminal layout saves installation space. High attenuation rate and low insertion loss Operating temperature range:
* 55 to +125 . Lead-free terminals permit reflow and flow soldering

Applications

* Bluetooth
* 2.4GHz-LAN
* Electrical Characteristics TOKO Part Numbers LTF3216B-F2R4A LTF2012B-F2R4B Pass Bandwidth Insertion Loss Return Loss [MHz] (Max. ) (Min. ) 2400
* 2500 2400
* 2500 1.8 dB 2.0 dB 9.5 dB 10 dB Attenuation (dB) (Min. ) 11 dB (@1.785
