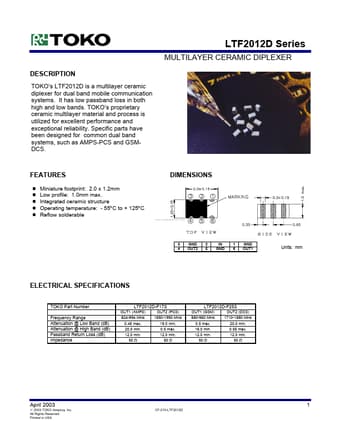

LTF2012D MULTILAYER CERAMIC DIPLEXER

TOKO’s LTF2012D is a multilayer ceramic diplexer for dual band mobile communication systems. It has low passband loss in both high and low bands. TOKO’s proprietary ceramic multilayer material and process is utilized for excellent performance and exceptional reliability. Specific parts have been des.

LTF2012D Features

* Miniature footprint: 2.0 x 1.2mm Low profile: 1.0mm max. Integrated ceramic structure Operating temperature: - 55°C to + 125°C Reflow solderable DIMENSIONS www.DataSheet4U.com 3 4 GND OUT2 2 5 IN GND 1 6 GND OUT1 Units: mm ELECTRICAL SPECIFICATIONS TOKO Part Number Frequency Range Attenuat
