TK11042 - TEMPERATURE SENSOR IC

Datasheet Summary

Description

The TK11042 is a temperature sensor IC with a linear output of 6 mV/°C over the range of -30 to + 105 °C.

Features

  • s Linear Output Voltage 6 mV/°C Output s 2.7 to 10.0 V Supply Range s Miniature Package (SOT-25) s Minimum External Parts Count s Low Power Consumption.

📥 Download Datasheet

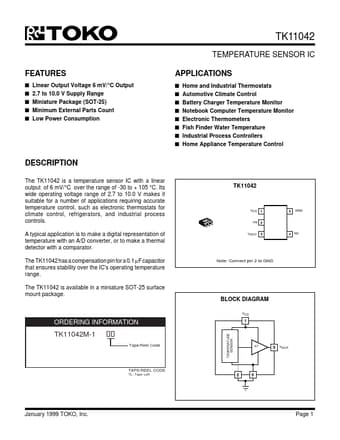

Datasheet preview – TK11042

Datasheet Details

Part number TK11042
Manufacturer TOKO
File Size 33.32 KB
Description TEMPERATURE SENSOR IC
Datasheet download datasheet TK11042 Datasheet
Additional preview pages of the TK11042 datasheet.

📁 Similar Datasheet

  • TK110A10PL - Silicon N-Channel MOSFET (Toshiba)
  • TK110A65Z - Silicon N-Channel MOSFET (Toshiba)
  • TK110E10PL - Silicon N-Channel MOSFET (Toshiba)
  • TK110E65Z - Silicon N-Channel MOSFET (Toshiba)
  • TK110N65Z - Silicon N-Channel MOSFET (Toshiba)
  • TK110P10PL - Silicon N-Channel MOSFET (Toshiba)
  • TK110U65Z - Silicon N-Channel MOSFET (Toshiba Semiconductor)
  • TK110Z65Z - Silicon N-Channel MOSFET (Toshiba)
  • TK11250C - LDO Regulator (Toko America)
  • TK11840 - DC/DC Controller (Asahi KASEI)
Other Datasheets by TOKO

Full PDF Text Transcription

Click to expand full text
TK11042 TEMPERATURE SENSOR IC FEATURES s Linear Output Voltage 6 mV/°C Output s 2.7 to 10.0 V Supply Range s Miniature Package (SOT-25) s Minimum External Parts Count s Low Power Consumption APPLICATIONS s Home and Industrial Thermostats s Automotive Climate Control s Battery Charger Temperature Monitor s Notebook Computer Temperature Monitor s Electronic Thermometers s Fish Finder Water Temperature s Industrial Process Controllers s Home Appliance Temperature Control DESCRIPTION The TK11042 is a temperature sensor IC with a linear output of 6 mV/°C over the range of -30 to + 105 °C. Its wide operating voltage range of 2.7 to 10.
