TL0324S 65COM / 132SEG DRIVER & CONTROLLER

Table 4-1. Pin description Power supply Name I/O Description VDD VSS V0 V1 V2 V3 V4 Power supply Shared with the MPU power supply terminal VCC. This is a 0V terminal connected to the system GND. Main VSS pad (PAD No. 43,44,45,46 and 47) have to be connected The voltage is determined by the L.

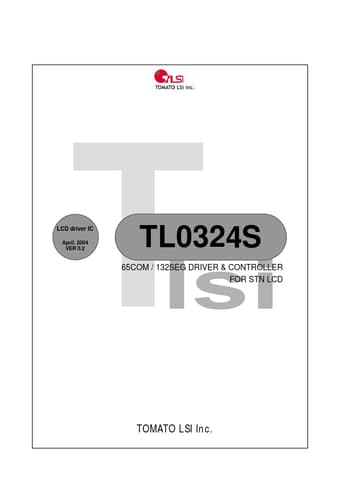

LCD driver IC April. 2004 VER 0.2 TL0324S 65COM / 132SEG DRIVER & CONTROLLER FOR STN LCD TOMATO LSI Inc. TL0324S Ver 0.1 65COM / 132SEG DRIVER & CONTROLLER FOR STN LCD 1. INTRODUCTION The TL0324S is a driver and controller LSI for graphic dot-matrix liquid crystal display systems. It contains 65 common and 132 segment driver circuits. This chip is connected directly to a microprocessor (MPU), accepts serial or 8-bit parallel display data and stores in an on-chip Display Data RAM (DDRAM) of .

TL0324S Features

* Driver output circuits -. 65 common outputs / 132 segment outputs On-chip display data RAM (DDRAM) -. Capacity: 65 x 132=8,580 bits -. RAM bit data “1”: a dot of display is illuminated. -. RAM bit data “0”: a dot of display is not illuminated. Multi-chip operation -. Master and slave mode availabl

TL0324S Datasheet (1.38 MB)

TL0324S Datasheet Preview — Preview of TL0324S PDF

Datasheet Details

Part number:

TL0324S

Manufacturer:

TOMATO

File Size:

1.38 MB

Description:

65com / 132seg driver & controller.
