TL0302H

High Gain Ultra Low Noise Amplifier

TL0302H Features

* Small signal gain @ 6.6 GHz: 13.6 dB

* NF @ 6.6 GHz: 1.4 dB

* IP1dB @ 6.6 GHz: 0.5 dBm

* 3.3 V Typical operating voltage

* Operating frequency: 5.925 to 7.125 GHz 2.0 Applications Figure 1.1 Device Image (6 Pin 1.5×1.5×0.8mm DFN Package)

* IEEE 802.11 b/g/a/n/ac Wi-Fi, W

TL0302H General Description

RoHS/REACH/Halogen Free Compliance The TL0302H is a High Gain, Ultra-low Noise Amplifier (LNA) providing high gain and linearity. Over the abovementioned frequency band, this device exhibits excellent noise figure of 1.4 dB with outstanding gain flatness. The LNA is operated with a typical bias co.

TL0302H Datasheet (684.52 KB)

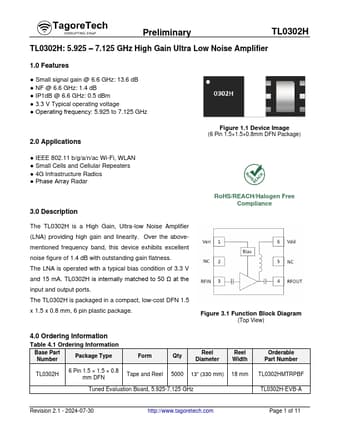

TL0302H Datasheet Preview — Preview of TL0302H PDF

Datasheet Details

Part number:

TL0302H

Manufacturer:

Tagore

File Size:

684.52 KB

Description:

High gain ultra low noise amplifier.
