TL0375J

Ultra Low Noise Amplifier

TL0375J Features

* Small signal gain @ 3600 MHz: 17.5 dB

* NF @ 3600 MHz: 0.4 dB

* OP1dB @ 3600 MHz: 19.5 dBm

* OIP3dB @ 3600 MHz: 32.5 dBm

* 5 V Typical operating voltage

* Operating frequency: 2.0 to 5.0 GHz 2.0 Applications

* 4G/5G Infrastructure Radios

* Small Cells and Cellular R

TL0375J General Description

The TL0375J is a high frequency version of TL0374J which is a broadband, ultra-low Noise Amplifier (LNA). With a simple input and output match, this LNA can be tuned for different frequency bands targeting LTE (small cells and infrastructure), radar and any other applications requiring low noise, hi.

TL0375J Datasheet (1.10 MB)

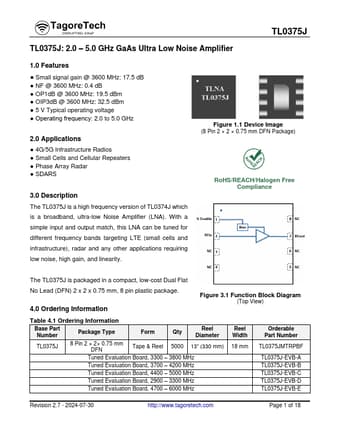

Preview of TL0375J PDF

Datasheet Details

Part number:

TL0375J

Manufacturer:

Tagore

File Size:

1.10 MB

Description:

Ultra low noise amplifier.
