TP15AS220S05 - 15W 3KVAC Isolation Wide Input AC/DC Converters

Name: TP15AS220S05
SKU: TP15AS220S05-1203729

TOPPOWER

📥 Download Datasheet

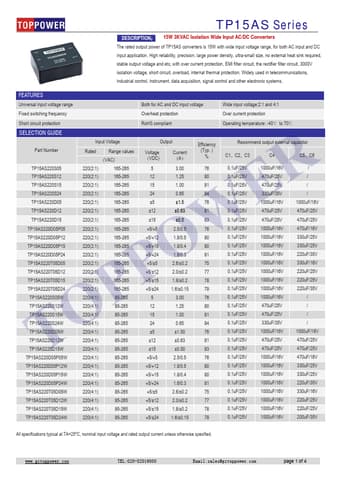

TP15AS220S05 Datasheet Preview — Preview of TP15AS220S05 PDF

Datasheet Details

Part number	TP15AS220S05
Manufacturer	TOPPOWER
File Size	393.44 KB
Description	15W 3KVAC Isolation Wide Input AC/DC Converters
Datasheet	TP15AS220S05-TOPPOWER.pdf

TP15AS220S05 Product details

Description

15W 3KVAC Isolation Wide Input AC/DC Converters The rated output power of TP15AS converters is 15W with wide input voltage range, for both AC input and DC input application.

Features

Universal input voltage range Both for AC and DC input voltage Wide input voltage:2:1 and 4:1 Fixed switching frequency Overheat protection Over current protection Short circuit protection.
