TP30AU220D05P24

25~30W 3KVAC Isolation Wide Input AC/DC Converters

TP30AU220D05P24 Features

* Universal input voltage range Both for AC and DC input voltage Wide input voltage:2:1 and 4:1 Fixed switching frequency Overheat protection Over current protection Short circuit protection RoHS compliant Operating temperature: -40℃to 70℃ SELECTION GUIDE Part Number TP25AU220S03W RTP25AU220

TP30AU220D05P24 General Description

25~30W 3KVAC Isolation Wide Input AC/DC Converters The rated output power of TP25AU~TP30AU converters is 25~30W with wide input voltage range, for both AC input and DC input application. High reliability, precision, large power density, ultra-small size, no external heat sink required, stable outpu.

TP30AU220D05P24 Datasheet (397.91 KB)

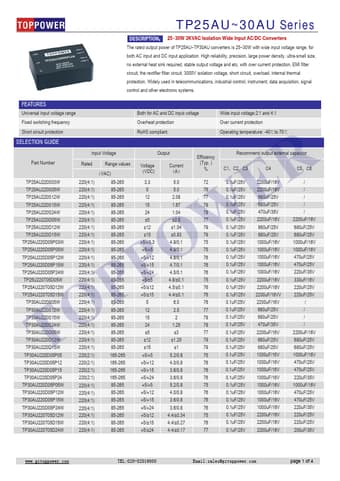

Preview of TP30AU220D05P24 PDF

Datasheet Details

Part number:

TP30AU220D05P24

Manufacturer:

TOPPOWER

File Size:

397.91 KB

Description:

25~30w 3kvac isolation wide input ac/dc converters.
