TPE0303D Datasheet - TOPPOWER

1W 1.5KVDC and 2KVDC Isolated Single Output DC/DC Converters

TPE0303D Features

* RoHS compliant Single isolated output SIP:1.5KVDC isolation DIP: 2KVDC isolation Efficiency up to 81% UL 94V-0 package material Operating temperature :-40℃ to 105℃ Footprint from 0.69cm2 Power density 1.53W/cm3 Industry standard pinout Input voltage: 3.3V, 5V, 12V Output voltage:3.3V,5V, 9V,

TPE0303D General Description

1W 1.5KVDC and 2KVDC Isolated Single Output DC/DC Converters The TPE series are miniature, isolated 1W DC/DC converters in a SIP and DIP package. They offer the ideal solution in many space critical applications for board level power distribution. The internal SMD construction makes it possible to .

TPE0303D Datasheet (624.57 KB)

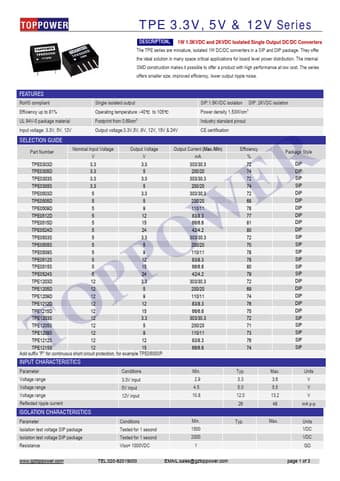

TPE0303D Datasheet Preview — Preview of TPE0303D PDF

Datasheet Details

Part number:

TPE0303D

Manufacturer:

TOPPOWER

File Size:

624.57 KB

Description:

1w 1.5kvdc and 2kvdc isolated single output dc/dc converters.
