LM16032D

Chinese Character LCD

LM16032D Features

* 160x32 dots, Built-in Chinese Fonts

* Mechanical size compatible with standard

* 20 x 2 character LCD module LMB202A or LMB202D Series

* Parallel or Serial interface optional

* 3.3v,5v power supply optional TERMINAL FUNCTIONS Descriptions Pin Name Parallel Mode Serial Mode

LM16032D General Description

Pin Name Parallel Mode Serial Mode (PSB=H) (PSB=L) 1 VSS 0V Power Supply, Ground 2 VDD Positive Power Supply 3 V0 Power Supply for LCD Driving 4 RS Register Select Chip Select RS=H, data read or write CS=H, chip enable RS=L,Instruction read/write CS=L, Chip disable 5 R/W Read / Writ.

LM16032D Datasheet (60.04 KB)

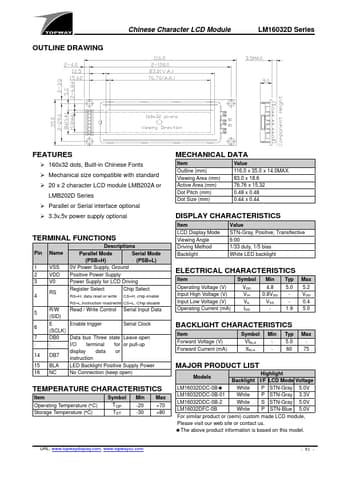

Preview of LM16032D PDF

Datasheet Details

Part number:

LM16032D

Manufacturer:

TOPWAY

File Size:

60.04 KB

Description:

Chinese character lcd.
