TBA1-0511E - DC/DC Step-Down Converter

DC/DC Converter TBA 1E Series, 1 Watt Continuous short circuit protection I/O isolation: 1’500 VDC Operating temperature range -40 to +85 °C without derating Input voltage ranges (±10%): 5, 12, 24 VDC High efficiency up to 82% SIP-7 package Unregulated outputs 3-year product warranty Models Order Code TBA 1-0511E TBA 1-0512E TBA 1-0513E TBA 1-0521E TBA 1-0522E TBA 1-0523E TBA 1-1211E TBA 1-1212E TBA 1-1213E TBA 1-

TBA1-0511E Features

* and offers an integrated continuous short circuit protection circuit, an operating temperature range from

* 40°C to 85°C without derating and I/O-isolation of 1’500 VDC. It offers a broad application range in any space and cost critical application. Output 1 Vnom Imax 5 VDC 200 mA 12 VD

TBA1-0511E-TRACOPOWER.pdf

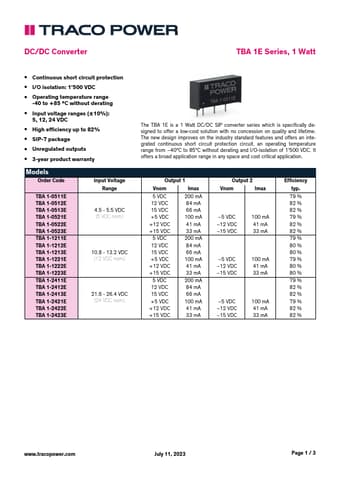

TBA1-0511E Datasheet Preview — Preview of TBA1-0511E PDF

Datasheet Details

Part number:

TBA1-0511E

Manufacturer:

TRACO POWER

File Size:

900.69 KB

Description:

Dc/dc step-down converter.
