TBA1-0511HI - DC/DC Converter

DC/DC Converter TBA 1HI Series, 1 Watt Continuous short circuit protection I/O isolation: 2'121 VAC Operating temperature range -40 to +85 °C without derating Input voltage ranges (±10%): 5, 12, 24 VDC High efficiency up to 82% SIP-7 package Unregulated outputs 3-year product warranty Models Order Code TBA 1-0511HI TBA 1-0519HI TBA 1-0512HI TBA 1-0513HI TBA 1-0521HI TBA 1-0522HI TBA 1-0523HI TBA 1-1211HI TBA 1-121

TBA1-0511HI Features

* and offers an integrated continuous short circuit protection circuit, an operating temperature range from

* 40°C to 85°C without derating and I/O-isolation of 3'000 VDC. It offers a broad application range in any space and cost critical application. Output 1 Vnom Imax 5 VDC 200 mA 9 VDC

TBA1-0511HI-TRACOPOWER.pdf

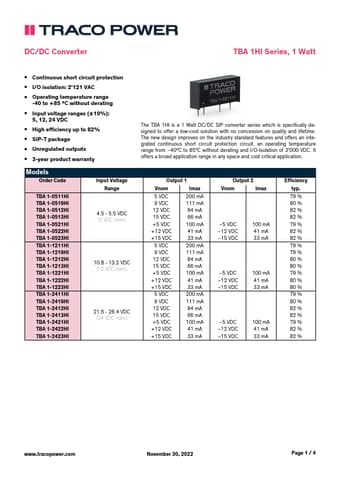

TBA1-0511HI Datasheet Preview — Preview of TBA1-0511HI PDF

Datasheet Details

Part number:

TBA1-0511HI

Manufacturer:

TRACO POWER

File Size:

796.07 KB

Description:

Dc/dc converter.
