TEL15-2422WIN DC/DC Converters

DC/DC Converter TEL 15WIN Series, 15 Watt Ultra compact 15 Watt converter in DIP-16 metal casing Highest power density of 4.51 W/cm3 Operating temperature range -40°C to +85°C Wide 4:1 input voltage ranges: 9-36, 18-75 VDC High efficiency (up to 87%) for low thermal loss 6-side shielded metal case with insulated baseplate Built-In EN 55032 class A filter (conducted) Protection against short circuit 3-year.

TEL15-2422WIN Features

* a high efficiency of up to 87% which enables an operation temperature of up to +55°C at full load and up to 85°C with 50% load. The converters also have an internal input filter to comply with conducted emission standard EN 55032 class A. It's an economical solution for space critical and cost sensi

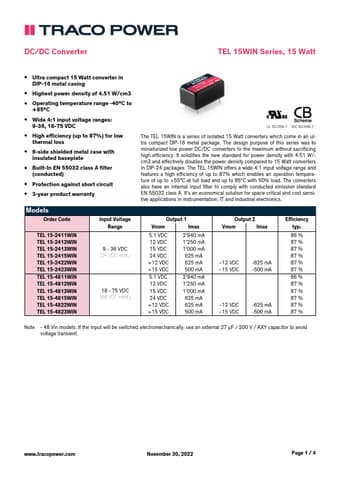

TEL15-2422WIN Datasheet (1.12 MB)
