TEL15-2422WIN-HS Datasheet - TRACO POWER

TEL15-2422WIN-HS DC/DC Converters

DC/DC Converter TEL 15WIN-HS Series, 15 Watt Ultra compact 15 Watt converter in DIP-16 metal casing Special heatsink-case design for maximized temperature capabilities Operating temperature range -40°C to +70°C without derating Wide 4:1 input voltage ranges: 9-36, 18-75 VDC High efficiency (up to 87%) for low thermal loss 6-side shielded metal case with insulated baseplate Built-In EN 55032 class A filter (conducted)

TEL15-2422WIN-HS Features

* a high efficiency of up to 87% which together with the integrated heatsink casing enables an operation temperature of up to +70°C at full load and up to 85°C with 50% load. The converters also have an internal input filter to comply with conducted emission standard EN 55032 class A. It's an economic

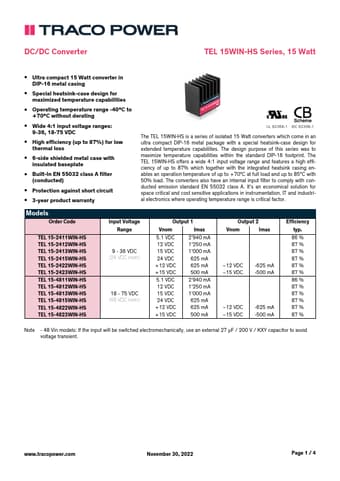

TEL15-2422WIN-HS Datasheet (1.09 MB)
