TEL15-4811WIN, TEL15-2411WIN Datasheet - TRACO POWER

TEL15-4811WIN, TEL15-2411WIN, DC/DC Converters

DC/DC Converter TEL 15WIN Series, 15 Watt * Ultra compact 15 Watt converter in DIP-16 metal casing * Highest power density of 4.51 W.

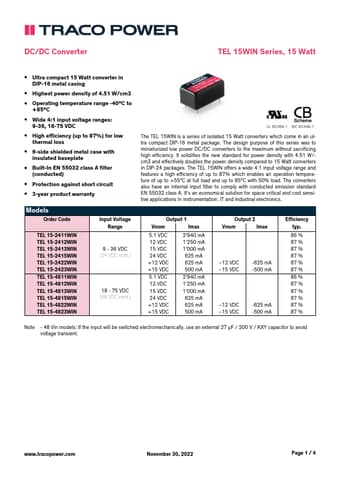

datasheet Preview Page 1 from Datasheet4u.com

TEL15-2411WIN-TRACOPOWER.pdf

TEL15-4811WIN Datasheet Preview — This datasheet PDF includes multiple part numbers: TEL15-4811WIN, TEL15-2411WIN. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TEL15-4811WIN, TEL15-2411WIN

Manufacturer:

TRACO POWER

File Size:

1.12 MB

Description:

DC/DC Converters

Note:

This datasheet PDF includes multiple part numbers: TEL15-4811WIN, TEL15-2411WIN.
Please refer to the document for exact specifications by model.

Features

* a high efficiency of up to 87% which enables an operation temperature of up to +55°C at full load and up to 85°C with 50% load. The converters also have an internal input filter to comply with conducted emission standard EN 55032 class A. It's an economical solution for space critical and cost sensi

Applications

* in instrumentation, IT and industrial electronics. Output 1 Vnom Imax 5.1 VDC 2'940 mA 12 VDC 1'250 mA 15 VDC 1'000 mA 24 VDC 625 mA +12 VDC 625 mA +15 VDC 500 mA 5.1 VDC 2'940 mA 12 VDC 1'250 mA 15 VDC 1'000 mA 24 VDC 625 mA +12 VDC 625 mA +15 VDC 500 mA Output 2 Vnom
