* a high efficiency of up to 87% which enables an operation temperature of up to +55°C at full load and up to 85°C with 50% load. The converters also have an internal input filter to comply with conducted emission standard EN 55032 class A. It's an economical solution for space critical and cost sensi

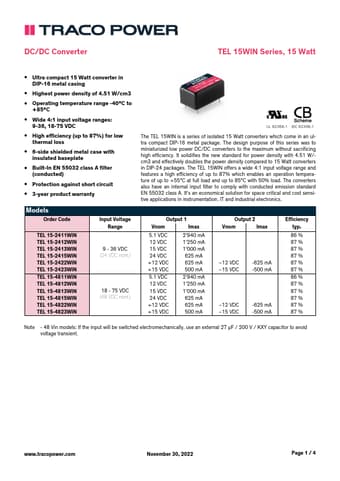

TEL15-4812WIN Datasheet (1.12 MB)
TEL15-4812WIN
TRACO POWER
1.12 MB
Dc/dc converters.
DC/DC Converter
TEL 15WIN Series, 15 Watt
* Ultra compact 15 Watt converter in
DIP-16 metal casing
* Highest power density of 4.51 W.
