MBR12030R, MBR12020 (MBR12020 - MBR120100R) SCHOTTKY DIODES

MBR12030R Description

Transys Electronics L I M I T E D MBR12020(R) THRU MBR120100(R) SCHOTTKY DIODES MODULE TYPE 120A .

MBR12030R Features

* High Surge Capability Types Up to 100V V RRM 120Amp Rectifier 20-100 Volts HALF PACKAGE Maximum Ratings Operating Temperature: -40 C to +175 Storage Temperature: -40 C to +175 Part Number Maximum Recurrent Peak Reverse Voltage 20V 30V 35V 40V 45V 60V 80V 100V Maximum DC Blocking Voltage 20V 30V 3

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR12030R, MBR12020. Please refer to the document for exact specifications by model.

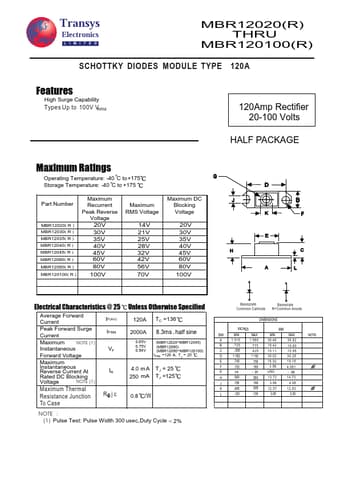

datasheet Preview Page 2

Datasheet Details

Part number
MBR12030R, MBR12020
Manufacturer
TRANSYS
File Size
170.33 KB
Datasheet
MBR12020_TRANSYS.pdf
Description
(MBR12020 - MBR120100R) SCHOTTKY DIODES
Note
This datasheet PDF includes multiple part numbers: MBR12030R, MBR12020.
Please refer to the document for exact specifications by model.
