CSE186L

Current Sense / Low Frequency Transformers

CSE186L General Description

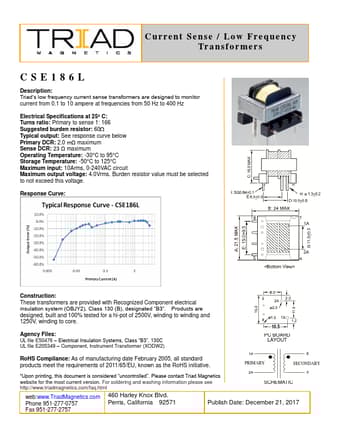

Triad’s low frequency current sense transformers are designed to monitor current from 0.1 to 10 ampere at frequencies from 50 Hz to 400 Hz Electrical Specifications at 25º C: Turns ratio: Primary to sense 1: 166 Suggested burden resistor: 60 Typical output: See response curve below Primary DCR: 2..

CSE186L Datasheet (220.89 KB)

Preview of CSE186L PDF

Datasheet Details

Part number:

CSE186L

Manufacturer:

TRIAD

File Size:

220.89 KB

Description:

Current sense / low frequency transformers.
