FP120-50 - Power Transformer

Description

The FP120-20 is part of a series which has a long history of reliable service in the field, made from a proven design and constructed with UL recognized materials.

Construction: Wound on two dual channel nylon bobbin.

Materials are UL recognized, Class B (130º C) rated.

TRIAD

📥 Download Datasheet

Datasheet Details

Part number	FP120-50
Manufacturer	TRIAD
File Size	44.05 KB
Description	Power Transformer
Datasheet	FP120-50 Datasheet
Additional preview pages of the FP120-50 datasheet.

📁 Similar Datasheet

FP120 - RAIL CURRENT MEASUREMENT IC (Feeling Technology)
FP1208 - high current power inductors (EATON)
FP120F60ADNS1 - FAST RECOVERY DIODE MODULE (JILIN SINO)
FP125F - (FP125F - FP175F) Rectifier Stacks (VMI)
FP125S - Rectifier Stacks (Voltage Multipliers)
FP100 - HIGH PERFORMANCE PHEMT (Filtronic Compound Semiconductors)
FP1000 - (FP1010 Series) SILICON SURGE SUPPRESSOR DIODES (ETC)
FP1000A - (FP1010 Series) SILICON SURGE SUPPRESSOR DIODES (ETC)
FP1005R - High current power inductors (EATON)
FP1006 - High current power inductors (EATON)

Other Datasheets by TRIAD

Full PDF Text Transcription

Click to expand full text

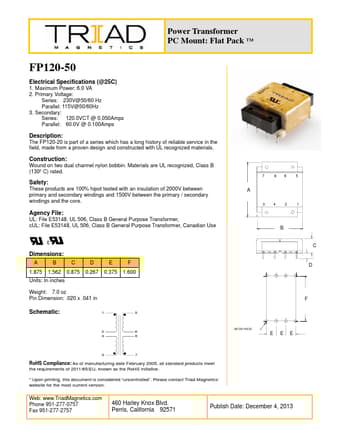

Power Transformer PC Mount: Flat Pack ™ FP120-50 Electrical Specifications (@25C) 1. Maximum Power: 6.0 VA 2. Primary Voltage: Series: 230V@50/60 Hz Parallel: 115V@50/60Hz 3. Secondary: Series: 120.0VCT @ 0.050Amps Parallel: 60.0V @ 0.100Amps Description: The FP120-20 is part of a series which has a long history of reliable service in the field, made from a proven design and constructed with UL recognized materials. Construction: Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated. Safety: These products are 100% hipot tested with an insulation of 2000V between primary and secondary windings and 1500V between the primary / secondary windings and the core.

Published: Jan 16, 2016 |
