DI100

DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

DI100 Features

* l l l l l Plastic material used carries Underwriters DIP Laboratory recognition 94V-O Low leakage Surge overload rating

* 30~50 amperes peak Ideal for printed circuit board Exceeds environmental standards of MIL-S-19500/228 MECHANICAL DATA Case: Reliable low cost construction utilizing mol

DI100 Datasheet (154.24 KB)

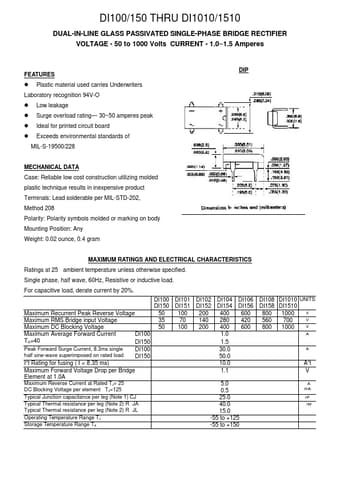

Preview of DI100 PDF

Datasheet Details

Part number:

DI100

Manufacturer:

TRSYS

File Size:

154.24 KB

Description:

Dual-in-line glass passivated single-phase bridge rectifier.
