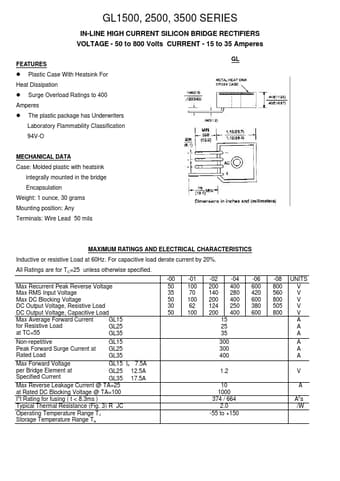

GL1500, 2500, 3500 SERIES
IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS VOLTAGE - 50 to 800 Volts CURRENT - 15 to 35 Amperes
GL FEATURES l l l Plastic Case With Heatsink For
Heat Dissipation Surge Overload Ratings to 400
Amperes The plastic package has Underwriters Laboratory Flammability Classification 94V-O
MECHANICAL DATA Case: Molded plastic with heatsink integrally mounted in the bridge Encapsulation Weight: 1 ounce, 30 grams Mounting position: Any Terminals: Wire Lead 50 mils
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Inductive or resistive Load at 60Hz. For capacitive load derate current by 20%. All Ratings are for TC=25 unless otherwise specified.
GL3500 Datasheet
