GL3504 IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS

GL3504 Description

GL1500, 2500, 3500 SERIES IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS VOLTAGE - 50 to 800 Volts CURRENT - 15 to 35 Amperes GL .

GL3504 Features

* l l l Plastic Case With Heatsink For Heat Dissipation Surge Overload Ratings to 400 Amperes The plastic package has Underwriters Laboratory Flammability Classification 94V-O MECHANICAL DATA Case: Molded plastic with heatsink integrally mounted in the bridge Encapsulation Weight: 1 ounce, 30 grams

📥 Download Datasheet

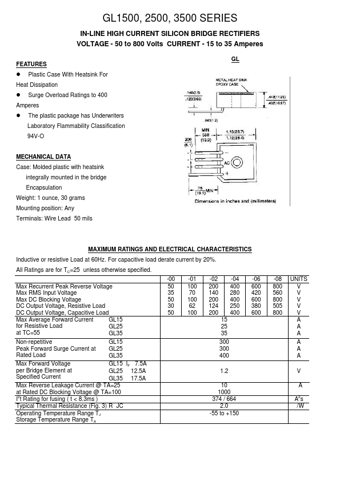

Preview of GL3504 PDF
datasheet Preview Page 2

Datasheet Details

Part number
GL3504
Manufacturer
TRSYS
File Size
155.10 KB
Datasheet
GL3504_TRSYS.pdf
Description
IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS
