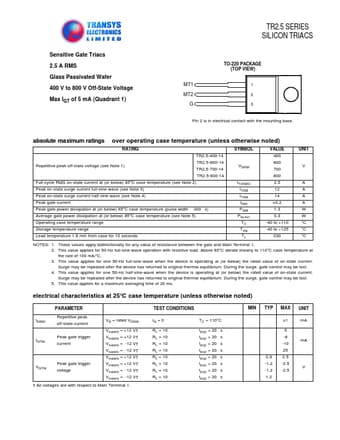

Preview of TR25 PDF
TR25 Datasheet Preview Page 2 TR25 Datasheet Preview Page 3

Datasheet Details

Part number:

TR25

Manufacturer:

TRSYS

File Size:

333.21 KB

Description:

Silicon triacs.

TR25, SILICON TRIACS

TR2.5 SERIES SILICON TRIACS l l l l l Sensitive Gate Triacs 2.5 A RMS Glass Passivated Wafer 400 V to 800 V Off-State Voltage Max IGT of 5 mA (Quadrant 1) MT1 MT2 G 1 2 3 TO-220 PACKAGE (TOP VIEW) Pin 2 is in electrical contact with the mounting base.

absolute maximum ratings over operating case temperature (unless otherwise noted) RATING TR2.5-400-14 TR2.5-600-14 TR2.5-700-14 TR2.5-800-14 SYMBOL VALUE 400 VDRM 600 700 800 IT(RMS) ITSM ITSM IGM PGM PG(AV) TC Tstg TL 2.5 12 14 ±0.2 1.3 0.3 -4
