OEL9M0065-G-E Datasheet - TRULY

OEL9M0065-G-E OLED Display Module

1 NC 16 BS0 2 VSS 17 BS1 3 VCC 18 DC# 4 VCOMH 19 CS# 5 VLSS 20 RES# 6 D7 21 FR 7 D6 22 IREF 8 D5 23 NC 9 D4 24 VDDIO 10 D3 25 VDD 11 D2 26 VCI 12 D1 27 VSL 13 D0 28 VLSS 14 E 29 VCC 15 R/W# 30 NC Rev : 1.1 Dec. 08. 2011 P.5 / 29 1/1 TRULY SEMICONDUCTORS LTD. .

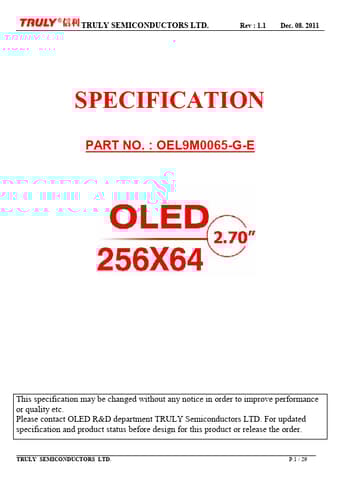

TRULY SEMICONDUCTORS LTD. Rev : 1.1 Dec. 08. 2011 SPECIFICATION PART NO. : OEL9M0065-G-E This specification may be changed without any notice in order to improve performance or quality etc. Please contact OLED R&D department TRULY Semiconductors LTD. For updated specification and product status before design for this product or release the order. TRULY SEMICONDUCTORS LTD. P.1 / 29 TRULY SEMICONDUCTORS LTD. Rev : 1.1 Dec. 08. 2011 PRODUCT CONTENTS n PHYSICAL DATA n ABSOLUTE MAXIMUM RATING.
