ABS6, ABS10 Standard Bridge Rectifier

TSC

Description

ABS2 * ABS10 Taiwan Semiconductor 1A, 200V- 1000V Standard Bridge Rectifier .
only.

📥 Download Datasheet

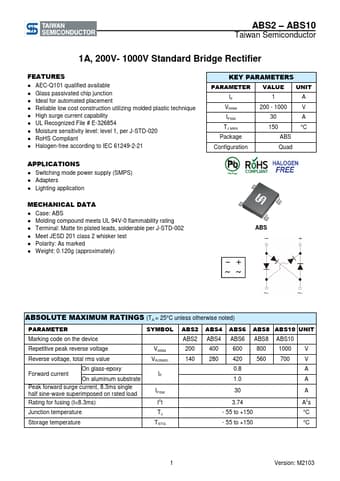

ABS6 Datasheet Preview — This datasheet PDF includes multiple part numbers: ABS6, ABS10. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ABS6, ABS10
Manufacturer: TSC
File Size: 422.78 KB
Datasheet: ABS10_TSC.pdf
Description: Standard Bridge Rectifier
Note: This datasheet PDF includes multiple part numbers: ABS6, ABS10.
Please refer to the document for exact specifications by model.

Features

* AEC-Q101 qualified available
* Glass passivated chip junction
* Ideal for automated placement
* Reliable low cost construction utilizing molded plastic technique
* High surge current capability
* UL Recognized File # E-326854
* Moisture sensitivity level: level 1, per J

Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application MECHANICAL DATA
* Case: ABS
* Molding compound meets UL 94V-0 flammability rating
* Terminal: Matte tin plated leads, solderable per J-STD-002
* Meet JESD 201 class 2 whisker test
* Polarity: As m
