TA1629A Datasheet - TST

TA1629A SAW Filter

Center Frequency (Fo) Max.Insertion Loss within 2400.0~2500.0 MHz Amplitude Ripple within 2400.0~2500.0 MHz VSWR within 2400.0~2500.0 MHz Attenuation: dB 35 55 D.C ~ 960.0 MHz dB 35 42 960.0 ~ 1570.0 MHz dB 35 41 1570.0 ~ 1580.0 MHz dB 35 40 1580.0 ~ 1710.0 MHz 1710.0 ~ 1910.0 MHz dB 30 35 1910.0 ~.

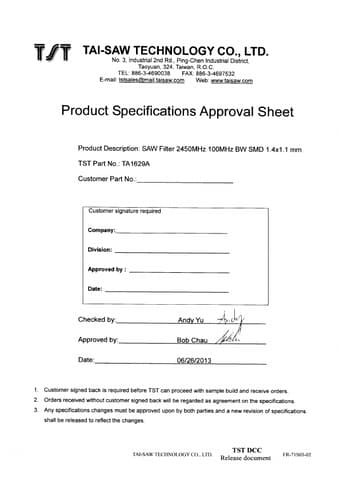

TAI-SAW TECHNOLOGY CO., LTD. No. 3, Industrial 2nd Rd., Ping-Chen Industrial District, Taoyuan, 324, Taiwan, R.O.C. TEL: 886-3-4690038 FAX: 886-3-4697532 E-mail: tstsales@mail.taisaw.com Web: www.taisaw.com SAW Filter 2450 MHz 100MHz BW SMD 1.4x1.1 mm MODEL NO.:TA1629A A. MAXIMUM RATING: 1. Input Power Level: 10 dBm 2. DC Voltage : 3V 3. Operating Temperature: -30° C to +85° C 4. Storage Temperature: -40° C to +85° C B. ELECTRICAL CHARACTERISTICS: Terminating source impedance : Terminating load.
