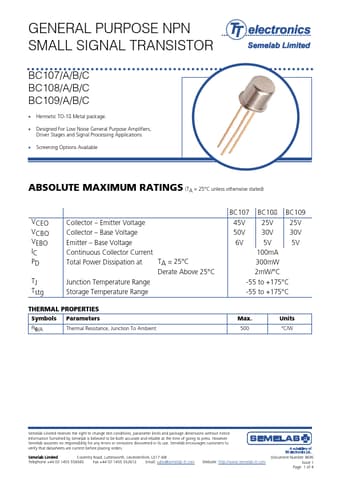

GENERAL PURPOSE NPN SMALL SIGNAL TRANSISTOR
BC107/A/B/C BC108/A/B/C BC109/A/B/C
• Hermetic TO-18 Metal package. • Designed For Low Noise General Purpose Amplifiers,
Driver Stages and Signal Processing Applications • Screening Options Available
ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise stated)
VCEO VCBO VEBO IC PD
TJ Tstg
Collector – Emitter Voltage Collector – Base Voltage Emitter – Base Voltage Continuous Collector Current Total Power Dissipation at TA = 25°C
Derate Above 25°C Junction Temperature Range Storage Temperature Range
THERMAL PROPERTIES
Symbols Parameters
RθJA
Thermal Resistance, Junction To Ambient
BC107 BC108 BC109
45V 25V 25V
50V 30V 30V
6V
5V
5V
100mA
300mW
2mW/°C
-55 to +175°C
-55 to +175°C
Max.
