BCY31A - SILICON PNP TRANSISTOR

📥 Download Datasheet

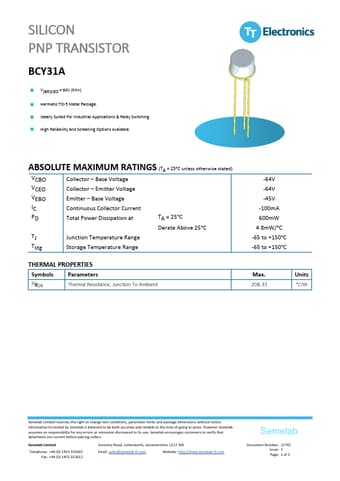

Datasheet preview – BCY31A

Datasheet Details

Part number BCY31A
Manufacturer TT
File Size 495.54 KB
Description SILICON PNP TRANSISTOR
Datasheet download datasheet BCY31A Datasheet
Additional preview pages of the BCY31A datasheet.

📁 Similar Datasheet

  • BCY31A - Bipolar PNP Device (Seme LAB)
  • BCY31 - Silicon PNP Transistor (Valvo)
  • BCY31 - PNP Silicon Transistor (Central Semiconductor)
  • BCY30 - PNP Silicon Transistor (Central Semiconductor)
  • BCY30A - Bipolar PNP Device in a Hermetically sealed TO5 Metal Package (Seme LAB)
  • BCY32 - PNP Silicon Transistor (Central Semiconductor)
  • BCY33 - PNP Silicon Transistor (Central Semiconductor)
  • BCY33A - Bipolar PNP Device (Seme LAB)
  • BCY34 - PNP Silicon Transistor (Central Semiconductor)
  • BCY34A - SMALL SIGNAL PNP TRANSISTORS (Seme LAB)
Other Datasheets by TT

    Full PDF Text Transcription

    Click to expand full text
    SILICON PNP TRANSISTOR BCY31A V(BR)CEO = 64V (Min). Hermetic TO-5 Metal Package. Ideally Suited For Industrial Applications & Relay Switching. High Reliability and Screening Options Available. ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise stated) VCBO Collector – Base Voltage VCEO Collector – Emitter Voltage VEBO Emitter – Base Voltage IC Continuous Collector Current PD Total Power Dissipation at TA = 25°C Derate Above 25°C TJ Junction Temperature Range Tstg Storage Temperature Range THERMAL PROPERTIES Symbols Parameters θ -64V -64V -45V -100mA 600mW 4.8mW/°C -65 to +150°C -65 to +150°C Max. Units Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.
