BCY30A - Bipolar PNP Device in a Hermetically sealed TO5 Metal Package

Seme LAB

Datasheet Details

Part number	BCY30A
Manufacturer	Seme LAB
File Size	40.30 KB
Description	Bipolar PNP Device in a Hermetically sealed TO5 Metal Package
Datasheet	BCY30A Datasheet
Additional preview pages of the BCY30A datasheet.

📁 Similar Datasheet

BCY30 - PNP Silicon Transistor (Central Semiconductor)
BCY31 - Silicon PNP Transistor (Valvo)
BCY31 - PNP Silicon Transistor (Central Semiconductor)
BCY31A - SILICON PNP TRANSISTOR (TT)
BCY32 - PNP Silicon Transistor (Central Semiconductor)
BCY33 - PNP Silicon Transistor (Central Semiconductor)
BCY34 - PNP Silicon Transistor (Central Semiconductor)
BCY55 - BCY55 (ETC)
BCY58 - NPN switching transistors (NXP)
BCY58 - LOW NOISE AUDIO AMPLIFIERS (STMicroelectronics)

Other Datasheets by Seme LAB

BCY31A - Bipolar PNP Device
BCY33A - Bipolar PNP Device
BCY34A - SMALL SIGNAL PNP TRANSISTORS
BCY39A - SMALL SIGNAL PNP TRANSISTORS IN TO-5
BCY56 - NPN SWITCHING TRANSISTOR
BCY57 - Bipolar NPN Device in a Hermetically sealed TO18 Metal Package
BCY58 - Bipolar NPN Device
BCY59 - Bipolar NPN Device

Full PDF Text Transcription

Click to expand full text

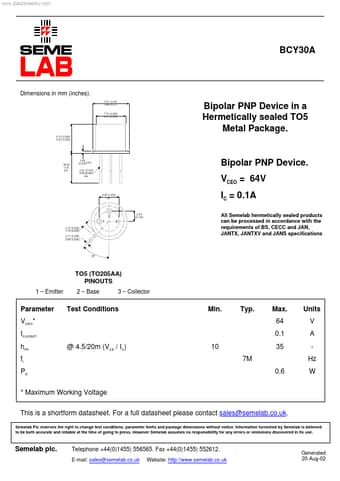

www.DataSheet4U.com BCY30A Dimensions in mm (inches). 8.51 (0.34) 9.40 (0.37) 7.75 (0.305) 8.51 (0.335) Bipolar PNP Device in a Hermetically sealed TO5 Metal Package. 6.10 (0.240) 6.60 (0.260) 38.00 (1.5) min. 0.89 max. (0.035) 0.41 (0.016) 0.53 (0.021) dia. Bipolar PNP Device. VCEO = 64V 5.08 (0.200) typ. IC = 0.1A 2.54 (0.100) 2 1 0.74 (0.029) 1.14 (0.045) 0.71 (0.028) 0.86 (0.034) 3 All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications 45° TO5 (TO205AA) PINOUTS 1 – Emitter 2 – Base 3 – Collector Parameter VCEO* IC(CONT) hFE ft PD Test Conditions Min. Typ. Max. 64 0.1 Units V A Hz @ 4.5/20m (VCE / IC) 10 7M 35 0.
