BCY56 - NPN SWITCHING TRANSISTOR

📥 Download Datasheet

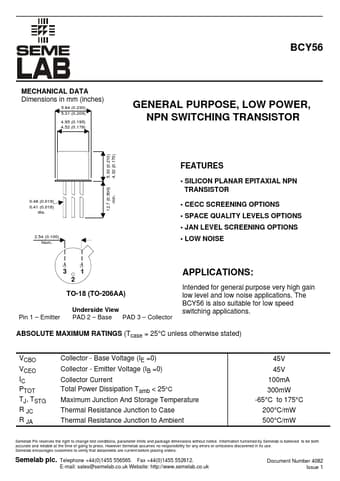

Datasheet preview – BCY56

Datasheet Details

Part number BCY56
Manufacturer Seme LAB
File Size 49.70 KB
Description NPN SWITCHING TRANSISTOR
Datasheet download datasheet BCY56 Datasheet
Additional preview pages of the BCY56 datasheet.

📁 Similar Datasheet

  • BCY55 - BCY55 (ETC)
  • BCY58 - NPN switching transistors (NXP)
  • BCY58 - LOW NOISE AUDIO AMPLIFIERS (STMicroelectronics)
  • BCY58 - npn silicon planar transistors (Siemens Semiconductor Group)
  • BCY58 - NPN SILICON PLANAR EPITAXIAL TRANSISTOR (Micro Electronics)
  • BCY58 - SILICON NPN TRANSISTORS (Central Semiconductor)
  • BCY58 - TRANSISTOR (Motorola)
  • BCY58 - SILICON PLANAR EPITAXIAL TRANSISTORS (Comset Semiconductor)
  • BCY58 - NPN COMPLEMENTARY SILICON PLANAR EPITAXIAL TRANSISTORS (CDIL)
  • BCY59 - NPN switching transistors (NXP)
Other Datasheets by Seme LAB
  • BCY57 - Bipolar NPN Device in a Hermetically sealed TO18 Metal Package
  • BCY58 - Bipolar NPN Device
  • BCY59 - Bipolar NPN Device
  • BCY30A - Bipolar PNP Device in a Hermetically sealed TO5 Metal Package
  • BCY31A - Bipolar PNP Device
  • BCY33A - Bipolar PNP Device
  • BCY34A - SMALL SIGNAL PNP TRANSISTORS
  • BCY39A - SMALL SIGNAL PNP TRANSISTORS IN TO-5

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com BCY56 MECHANICAL DATA Dimensions in mm (inches) 5.84 (0.230) 5.31 (0.209) 4.95 (0.195) 4.52 (0.178) GENERAL PURPOSE, LOW POWER, NPN SWITCHING TRANSISTOR 5.33 (0.210) 4.32 (0.170) FEATURES • SILICON PLANAR EPITAXIAL NPN TRANSISTOR • CECC SCREENING OPTIONS • SPACE QUALITY LEVELS OPTIONS • JAN LEVEL SCREENING OPTIONS • LOW NOISE 0.48 (0.019) 0.41 (0.016) dia. 2.54 (0.100) Nom. 12.7 (0.500) min. 3 2 1 APPLICATIONS: Intended for general purpose very high gain low level and low noise applications. The BCY56 is also suitable for low speed switching applications.
