OPB701ALZ - Reflective Object Sensor

Product Overview

OPB701ALZ Reflective Object Sensor by TT - Datasheet Preview — Datasheet preview – OPB701ALZ

Datasheet Details

Part number	OPB701ALZ
Manufacturer	TT
File Size	447.66 KB
Description	Reflective Object Sensor
Datasheet	OPB701ALZ Datasheet
Note	This datasheet PDF includes multiple part numbers: OPB701ALZ, OPB700Z. Please refer to the document for exact specifications by model.

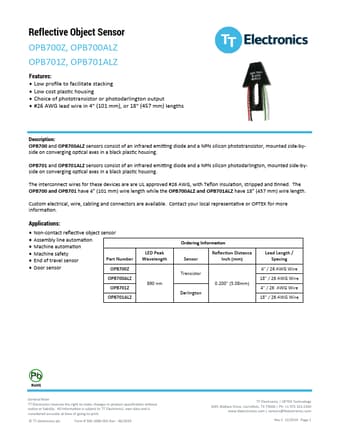

Additional preview pages of the OPB701ALZ datasheet.

Product details

Description

OPB700 and OPB700ALZ sensors consist of an infrared emitting diode and a NPN silicon phototransistor, mounted side-byside on converging optical axes in a black plastic housing.

Features

Low profile to facilitate stacking.
Low cost plastic housing.
Choice of phototransistor or photodarlington output.
#26 AWG lead wire in 4” (101 mm), or 18” (457 mm) lengths.
