OPB800

Optical Switch

OPB800 Features

* 0.375” (9.525 mm) wide gap

* Choice of aperture size

* Choice of minimum photocurrent

* Choice of opaque or IR transmissive shells

* Available for PCBoard mounting or with 24” 26 AWG wires W Package L Package Description: The OPB800L series, PCBoard mount

OPB800 General Description

The OPB800L series, PCBoard mounting, of wide gap switch provides the flexibility of a custom device from a standard product line, while the OPB800W series, remote mounted, switch offers 24” (610 mm) 26 AWG wire interconnect. Building from a standard housing that utilizes a 0.375” (9.5 mm) wide sl.

OPB800 Datasheet (524.65 KB)

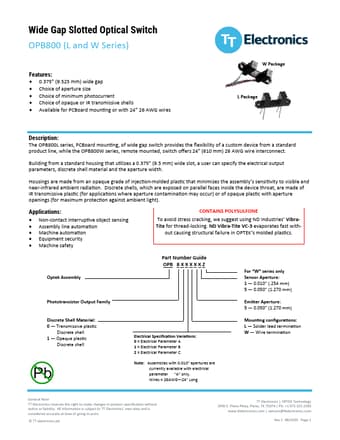

Preview of OPB800 PDF

Datasheet Details

Part number:

OPB800

Manufacturer:

TT

File Size:

524.65 KB

Description:

Optical switch.
