OPB800W - Optical Switch

This page provides the datasheet information for the OPB800W, a member of the OPB800 Optical Switch family.

Datasheet Summary

Description

The OPB800L series, PCBoard mounting, of wide gap switch provides the flexibility of a custom device from a standard product line, while the OPB800W series, remote mounted, switch offers 24” (610 mm) 26 AWG wire interconnect.

Features

  • 0.375” (9.525 mm) wide gap.
  • Choice of aperture size.
  • Choice of minimum photocurrent.
  • Choice of opaque or IR transmissive shells.
  • Available for PCBoard mounting or with 24” 26 AWG wires W Package L Package.

📥 Download Datasheet

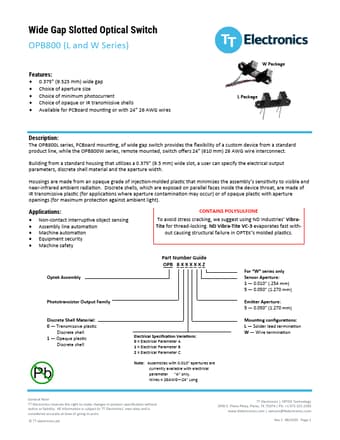

Datasheet preview – OPB800W

Datasheet Details

Part number OPB800W
Manufacturer TT
File Size 524.65 KB
Description Optical Switch
Datasheet download datasheet OPB800W Datasheet
Additional preview pages of the OPB800W datasheet.

📁 Similar Datasheet

  • OPB804 - Slotted Optical Switch (OPTEK)
  • OPB821 - Slotted Optical Switches (OPTEK)
  • OPB821S10 - Slotted Optical Switches (OPTEK)
  • OPB821S3 - Slotted Optical Switches (OPTEK)
  • OPB821S5 - Slotted Optical Switches (OPTEK)
  • OPB823A - SLOTTED OPTICAL SWITCHES (ETC)
  • OPB824A - SLOTTED OPTICAL SWITCHES (ETC)
  • OPB826S - Dual Channel Slotted Optical Switches (OPTEK)
  • OPB826SD - Dual Channel Slotted Optical Switches (OPTEK)
  • OPB829A - SLOTTED OPTICAL SWITCHES (ETC)
Other Datasheets by TT

Full PDF Text Transcription

Click to expand full text
Wide Gap Slotted Optical Switch OPB800 (L and W Series) Features: • 0.375” (9.525 mm) wide gap • Choice of aperture size • Choice of minimum photocurrent • Choice of opaque or IR transmissive shells • Available for PCBoard mounting or with 24” 26 AWG wires W Package L Package Description: The OPB800L series, PCBoard mounting, of wide gap switch provides the flexibility of a custom device from a standard product line, while the OPB800W series, remote mounted, switch offers 24” (610 mm) 26 AWG wire interconnect. Building from a standard housing that utilizes a 0.375” (9.5 mm) wide slot, a user can specify the electrical output parameters, discrete shell material and the aperture width.
