OPB821S10Z

Slotted Optical Switch

OPB821S10Z Features

* Non-contact switching

* Four standard aperture sizes for high resolution

* Low profile

* 0.080” (2.03 mm) wide, 0.250” (8.89 mm) deep slot

* Choice of PCBoard or wire mountings OPB820S OPB821Z Description: Each OPB820S and OPB821Z device consists of an in

OPB821S10Z General Description

Each OPB820S and OPB821Z device consists of an infrared emitting diode (LED, 890 nm center wavelength) and a NPN silicon phototransistor mounted in a low-cost black plastic housing on opposite sides of an 0.080” (2.03 mm) wide slot. Each device in this series has a 0.040” (1.02 mm) wide aperture lo.

OPB821S10Z Datasheet (470.49 KB)

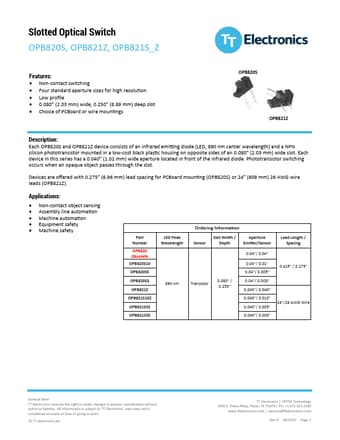

OPB821S10Z Datasheet Preview — Preview of OPB821S10Z PDF

Datasheet Details

Part number:

OPB821S10Z

Manufacturer:

File Size:

470.49 KB

Description:

Slotted optical switch.
