OPB821TX

High Resolution Slotted Optical Switch

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor TT Electronics OPTEK Technology OPB821TX SENSOR OPT SLOT PHOTOTRANS MODUL DigiKey 0 100 units
$338.53

OPB821TX Datasheet (489.07 KB)

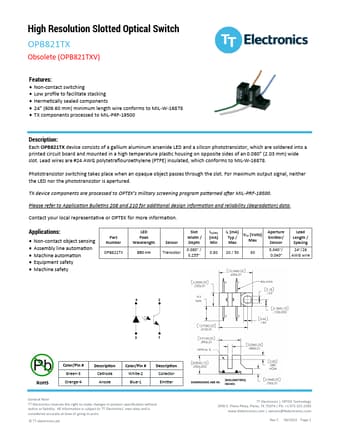

Preview of OPB821TX PDF Datasheet

Datasheet Details

Part number:

OPB821TX

Manufacturer:

TT

File Size:

489.07 KB

Description:

High resolution slotted optical switch

OPB821TX Features

* Non-contact switching

* Low profile to facilitate stacking

* Hermetically sealed components

* 24” (609.60 mm) minimum length wire conforms to MIL-W-16878

* TX components processed to MIL-PRF-19500 Description: Each OPB821TX device consists of a gallium alu

OPB821TX General Description

Each OPB821TX device consists of a gallium aluminum arsenide LED and a silicon phototransistor, which are soldered into a printed circuit board and mounted in a high temperature plastic housing on opposite sides of an 0.080” (2.03 mm) wide slot. Lead wires are #24 AWG polytetraflouroethylene (PTFE).
